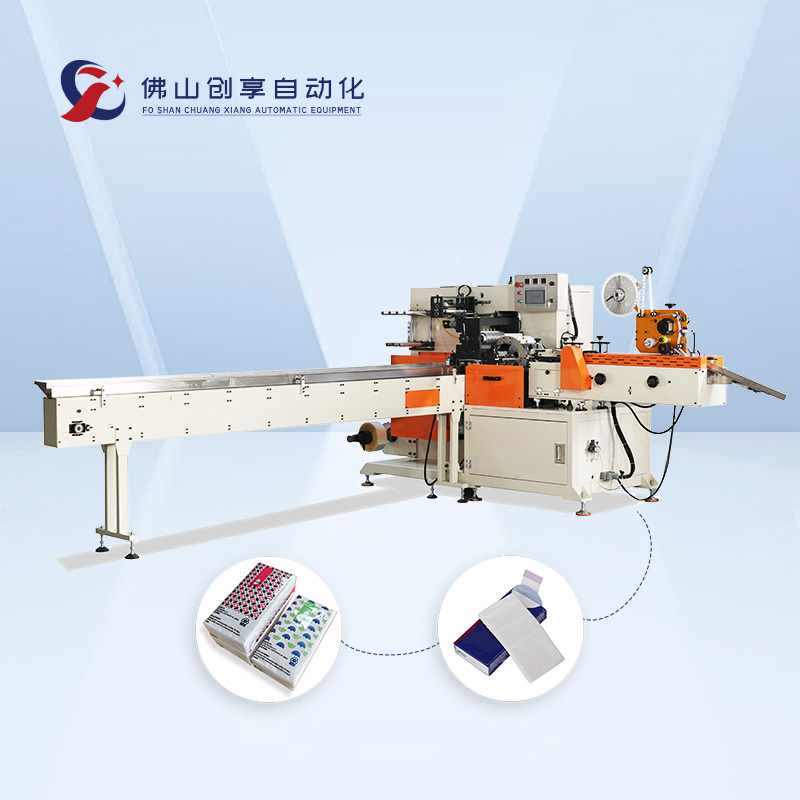

Automatic Tissue Paper Packing Machine PLC Gear Control Tissue Wrapping Machine 280 Cuts/Min

Name: Automatic Tissue Paper Packing Machine PLC Gear Control Tissue Wrapping Machine 280 CutsMin
Brand: Mingchuang
Price: 1 USD

Place of Origin : Foshan, China

Specification/Description : 0.6MPa

Packaging Type : Single Pack Wrapping

Production Process : Feeding, Embossing, Folding, Packing

Price : On request

Brand Name : Mingchuang

Packaging Details : Plywood Case or Plywood Pallet

Air Pressure : 0.6 MPa

MOQ : 1 Set

Remarks : -

Certification : CE & ISO Certifications

Item : Air Pressure

Control System : PLC and Gear Control

Payment Terms : T/T, 30% deposit, balance to be paid before shipment

Function : Facial Tissue Packing

Cutting Speed : 280 cuts/min

Delivery Time : About 30 days

Contact Now

Full Automatic Facial Tissue Packing Machine — Single Pack Tissue Wrapping Equipment

This fully automatic production line handles the complete process from parent roll feeding through to case packing and palletizing. It combines embossing, perforating, folding, buffering, single-pack wrapping, and final carton packing into one integrated system, delivering consistent output at up to 280 cuts per minute.

Production Process Flow

Parent roll feeding
Embossing & perforating
Folding
Conveyor buffering
Single pack packaging
Case packing & palletizing

MJ-AS-301 Handkerchief Bundling Machine

Facial Tissue Folding Machine

Automatic Tissue Paper Packing Machine PLC Gear Control Tissue Wrapping Machine 280 Cuts/Min

Facial Tissue Cutting Machine

Item No.	Parameter Name	Specification	Remark
1	Cutting Speed	280 cuts/min	Depends on cutting length
2	Product Specification Change Time	Approx. 4 min	Depends on operator proficiency
3	Blade Replacement Time	Approx. 4 min	Depends on operator proficiency
4	Cutting Range	L: 100–250 mm / W: 60–120 mm / H: 20–120 mm	Length / Width / Height
5	Cutting Length Tolerance	±1 mm	—
6	Trim Length	> 10 mm	—
7	Overall Dimension (L×W×H)	3725 × 1400 × 1700 mm	—
8	Machine Weight	≥ 1400 kg	—
9	Power Supply	380V 50Hz	—
10	Cutter Motor Power	3 kW	—
11	Total Power	8 kW	—
12	Voltage Fluctuation Range	±10%	—
13	Air Source Pressure	0.6 MPa	—

Facial Tissue 3D Packaging Machine

Item No.	Parameter Name	Specification	Remark
1	Packaging Speed	30–80 packs/min	Depends on material length and thermal stability
2	Film Width Range	Max. 520 mm	Can be customized according to different materials
3	Packing Size	L: 100–250 mm / W: 60–120 mm / H: 20–120 mm	Different sizes can be adjusted
4	Overall Dimensions	4300 × 1600 × 1570 mm	Length × Width × Height
5	Machine Weight	≈ 1400 kg	Approximate weight
6	Power Supply	380V 50Hz	Standard industrial power
7	Total Power	11.4 kW	Total installed power
8	Air Pressure	0.6 MPa	Pneumatic working pressure

Customizable 3D Embossing Rollers for Facial Tissue

Facial Tissue Unpacking, Packing, and Sealing Machine

Facility Requirements & Production Process

The production line covers an area of approximately 100 square meters. The factory power supply must be no less than 50 kilowatts, and an 8 cubic meter air compressor is required. The line can accommodate the production of base paper with a maximum diameter of 1500 mm.

Production Process

The folding rollers and other components lead the material into the folding section. After folding, the semi-finished paper strips are processed by the automatic folding mechanism, including the folding tail and other operations. The folded semi-finished paper strips are then sent to the post-processing section through the conveying system for pre-pressing, shaping, and related processes. Finally, the processed semi-finished paper strips are automatically fed into the large rotary paper cutter for cutting.
